Cockpit Views

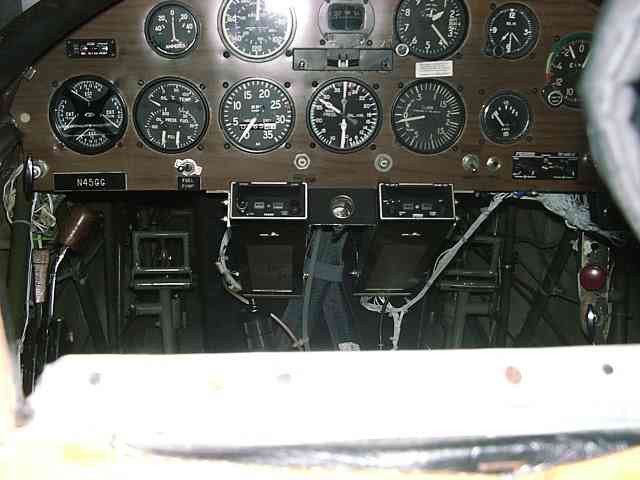

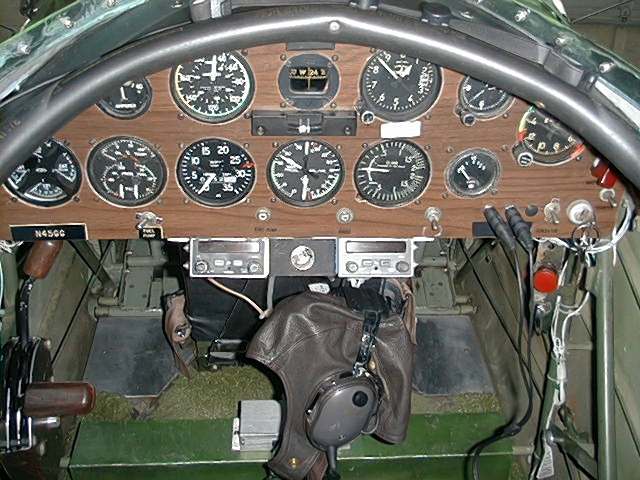

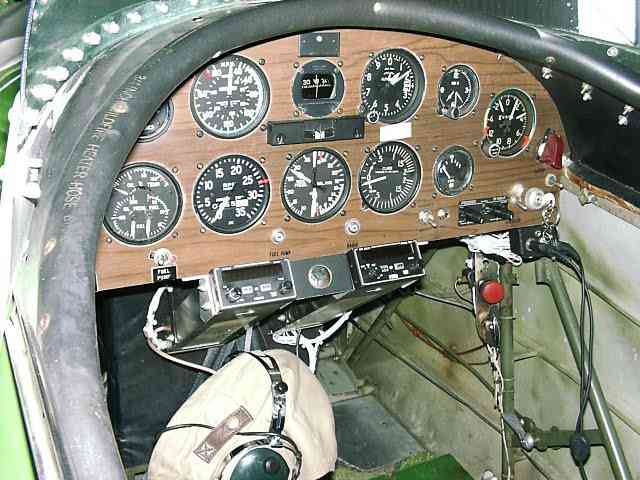

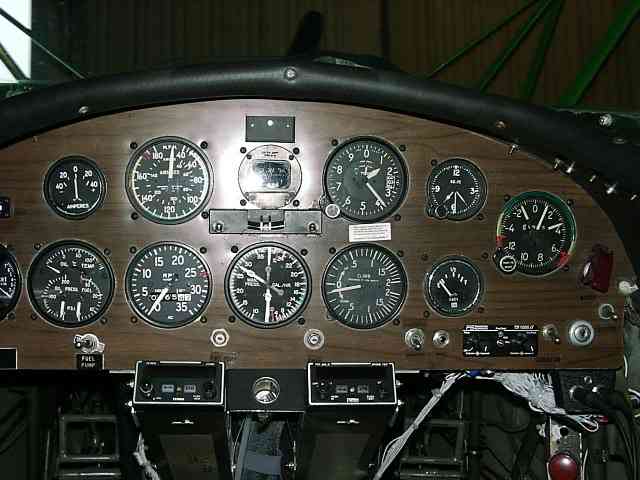

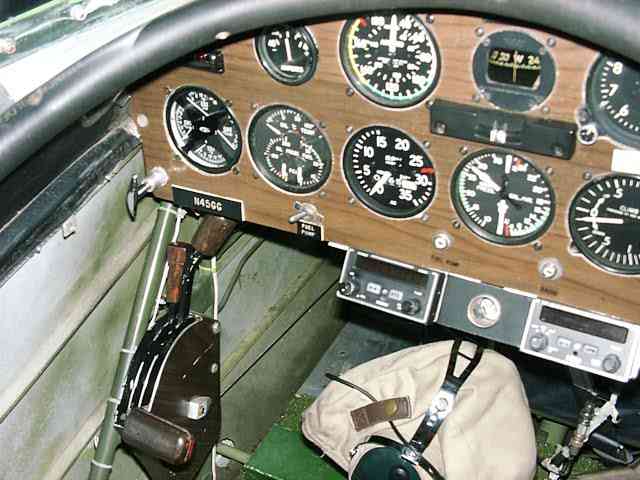

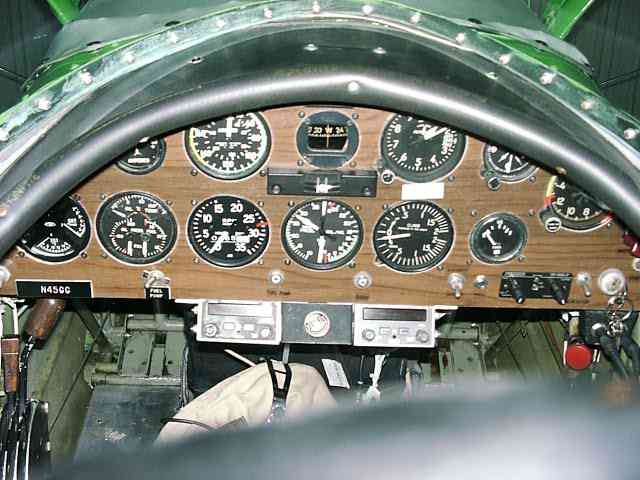

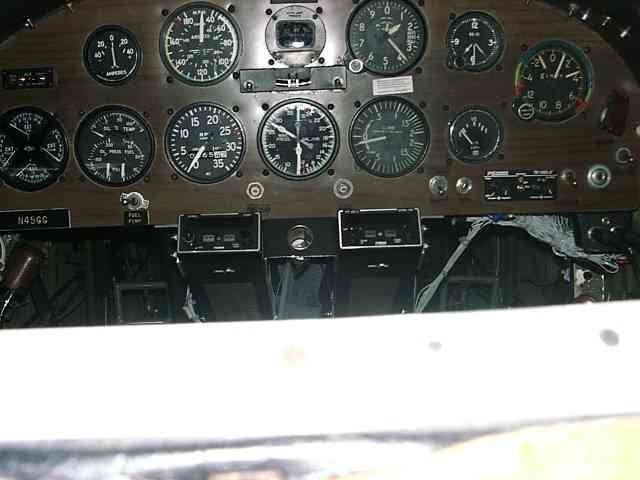

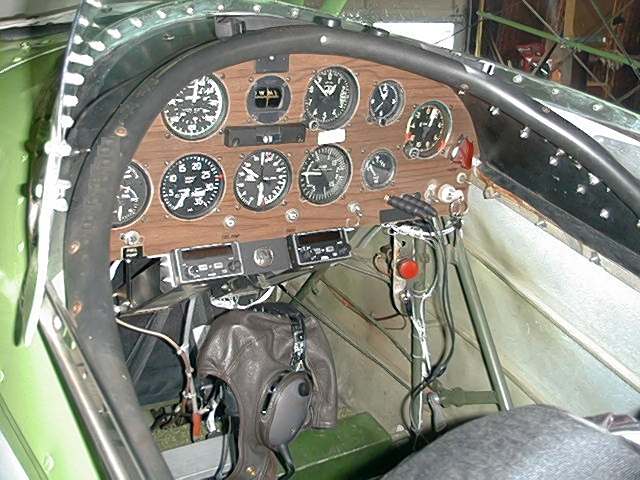

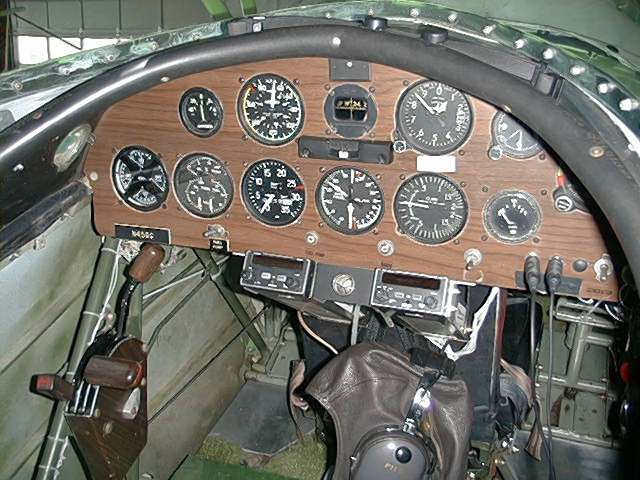

Pilot's Instruments

bullet

Top Row (left to right)

bulletAmmeter
bulletAirspeed
bulletCompass
bulletAltimeter
bulletClock
bulletG-Meter
bullet

Bottom Row (left to right)

bulletLeft/Right Exhaust Gas Temperature
bulletLeft/Right Cylinder Head Temperature
bulletOil Temperature
bulletOil Pressure
bulletFuel Pressure
bulletTachometer
bulletManifold Pressure/Fuel Flow
bulletRate of Climb
bulletGas Gauge
bulletMaster Switch (above red)

Bottom of Panel  --->

bulletHeater Control Handle
bulletElectric Fuel Pump Switch
bulletCircuit Breakers
bulletAvionics Switch
bulletAuxiliary Headphone Jack (no intercom)
bulletIntercom Pilot/Passenger Volume, Squelch
bulletGenerator Switch
bulletMag Switch (right/left/both) Key
bulletStarter
bullet

Below Panel (left to right)

bullet760 Channel Communications Radio
bullet12v Power Outlet (GPS, Handheld Nav/Com, Electric Socks...)
bulletMode C Transponder
bulletMicrophone, Headset, Music Jack
bulletPrimer (below)
bulletAlternate Air (below2)

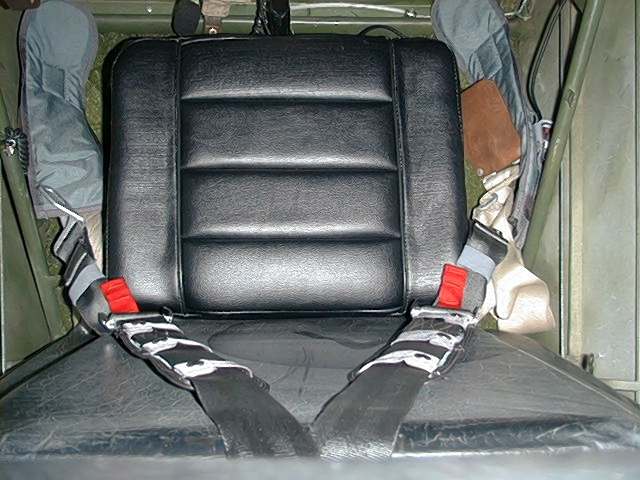

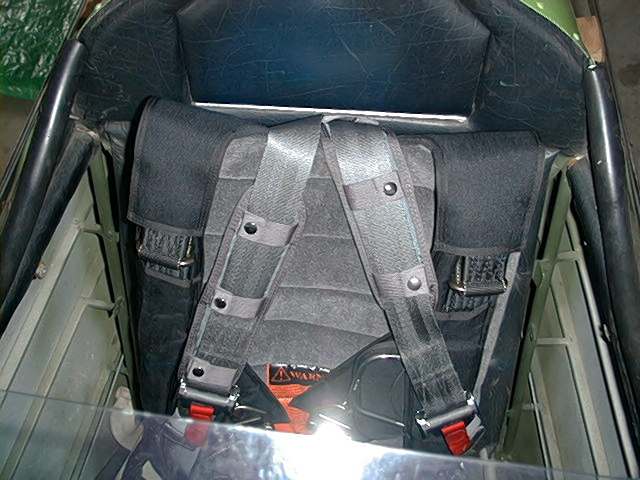

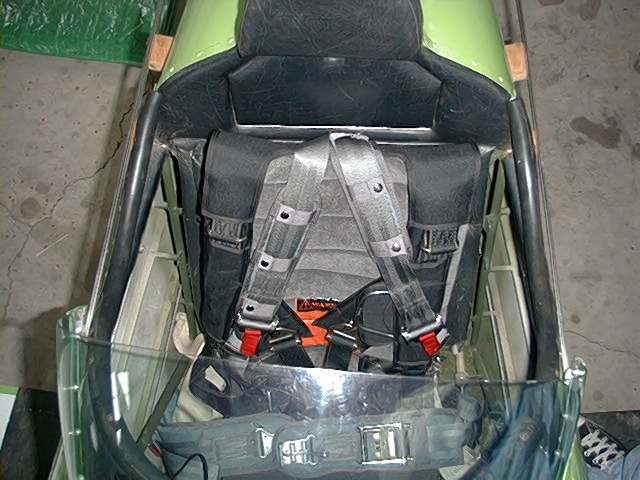

Pilot's Seat

Front Passenger

bullet

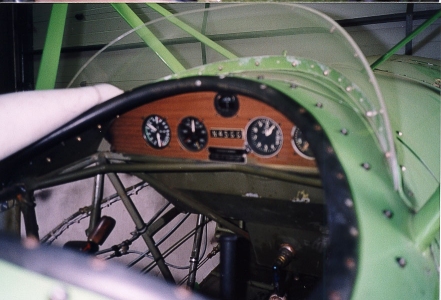

Passenger's Instruments

bulletManifold Pressure
bulletAirspeed
bulletCompass
bulletAltimeter
bulletTachometer

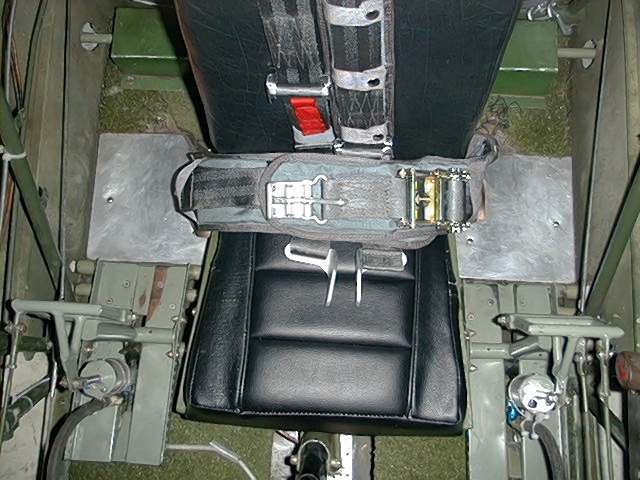

Passenger's Seat



Thumbnails

Click on any of the thumbnail pictures below for a larger view. Check back frequently as pictures will be added to this page from time to time.

01050001.jpg 01050003.jpg 01050005.jpg 01050008.jpg 01060001.jpg 01060002.jpg 01060003.jpg
2leftrear.jpg 2rightrear.jpg 45gg_inst.jpg 45gg_inst2.jpg downrear.jpg downrear1.jpg interi2.jpg
