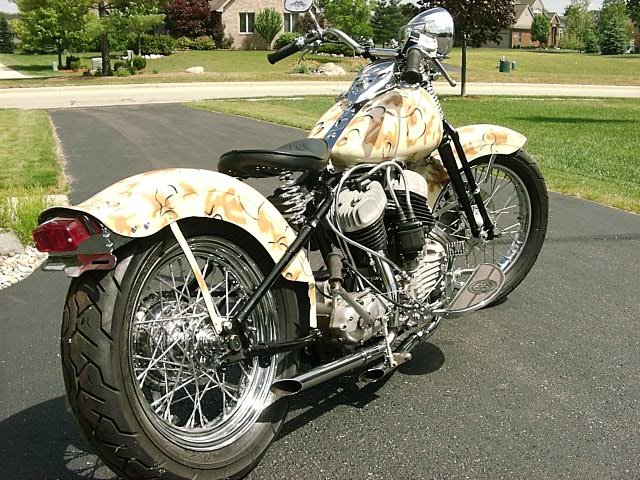

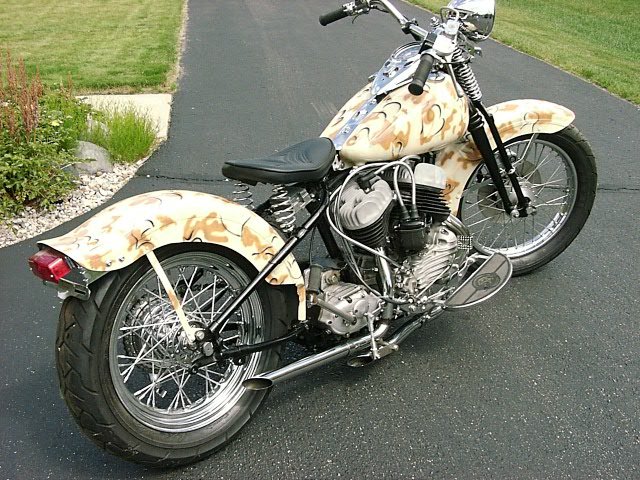

This site is dedicated to the construction of a 1942 (mostly) Harley-Davidson WLA 45" Flathead that my son, Kade, and I built together.  Construction was from the frame up, starting with a bare frame, most of the engine parts in a box, and a few pieces of sheet metal so its been an interesting journey starting in the fall of 2002.


After acquiring most of the parts and getting it 90% together, it sat untouched throughout 2004 and half of 2005.  One of the big hang-ups, other starting a new company and overhauling the engine on my Starduster II, was the fabrication of the belt drive motor pulley.  After finally getting it made we put it on, put gas in it, kicked it a couple of times, it fired, and it ran like it just returned from the tune-up shop and had been running all it's life... no adjustments, no tweaking, perfect!  That was June 17, 2005.


Ann Arbor, MI  June 2005

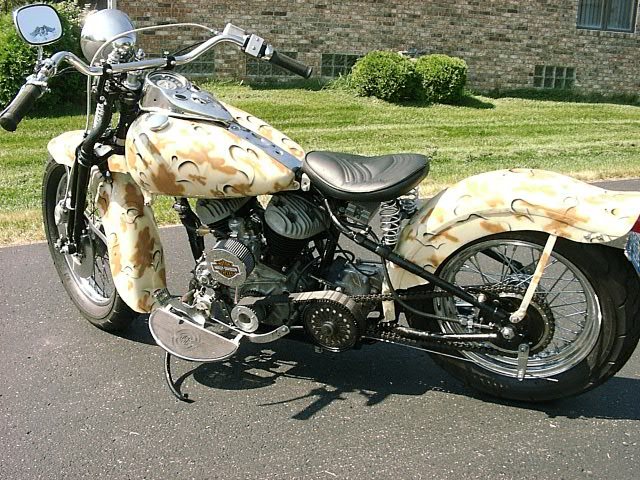

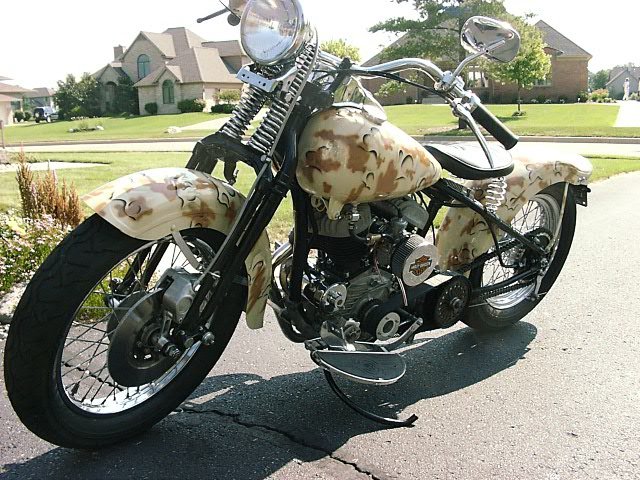

The objective was to take one of the world's most classic bikes and blend the old with the new to create a one of a kind motorcycle that's just plain fun to ride, cool to look at, and gives us endless stories to talk about.   We used many new reproduction or NOS parts to keep the old-school look and feel while adding some new-school touches.

Rebuilt motor with WLDR cams
Oversized pistons and machined, high compression heads
4-Speed BSA A-10 transmission
Exposed, 40mm belt-drive primary
Norton-style clutch and pressure plates
Hand clutch, custom forward controls, left-side foot shift
Mikuni 34mm carburetor, conventional petcock with reserve
Magneto ignition, high-capacity condenser, keyed lights and kill switch
12 volt generator, lighting, solid-state regulator, battery eliminator
Hydraulic front disc brake, new chrome rear drum
Chrome reproduction rear wheel, Yamaha front, matched Maxxis Classic tires
Big Twin springer fork with sealed roller bearings in neck
Desert Camouflage paint (US Army does Tribal flames and clearcoat)
Custom solo seat, springs, and Master Sergeant's bars and rockers pattern


Ann Arbor, MI  June 2005

This bike cost far more in time, money, and patience than either of us expected, but it was... and is a heck of a nice bike and we had a hell of a lot of fun in the process.  Kade has become quite the machinist, painter, and upholsterer and really did an outstanding job with all the different aspects of this bike.  Thanks to the folks who still sell parts for this thing... we've come to know them well.

45 Parts Depot

45 Restoration Company

eBay

Hackasaw & Co

Lytedrive

Rask Cycle

NOS Parts

All in all, it turned out to be exactly what we wanted... A motorcycle classic, a head turner, a conversation piece, and a super fun, dependable bike to ride.


Ann Arbor, MI  June 2005

Comments/Questions

Questions?... Comments?... anything you would like to ask, feel free to send Kade or I an e-mail.
