Fuel Tank Vents

Here is the result of adding the upright and inverted vents to the fuel tank.  It turned out to be more of an effort than I had hoped (wishfully) because I had to remove the top cowl, the sheet metal over the tank, and the front windscreen to reach the capped vents on the tank.  Now, if I can get the cap to stop leaking when inverted, I'll be in good shape!

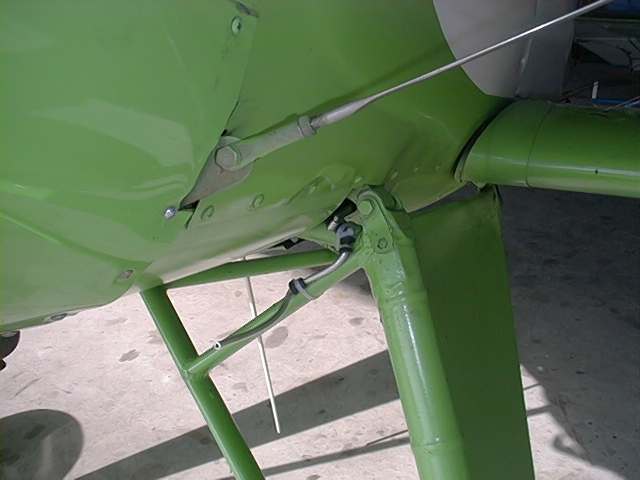

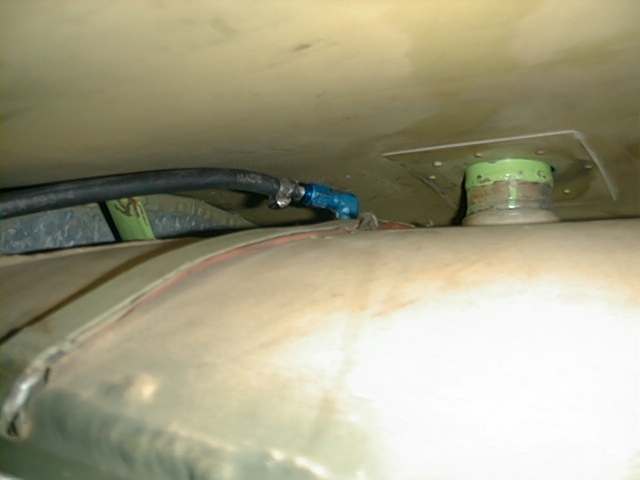

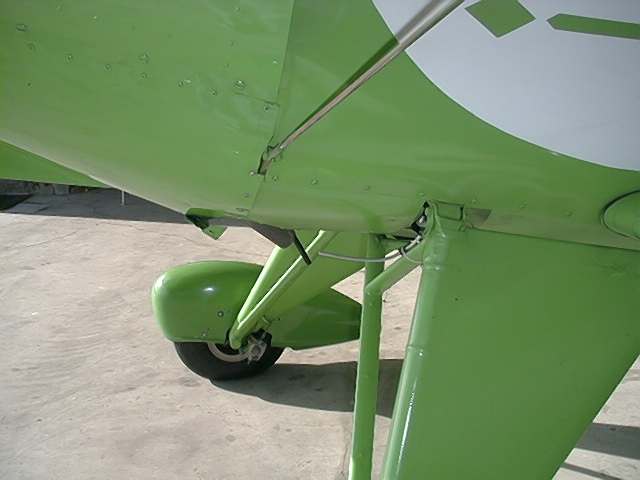

Upright Vent

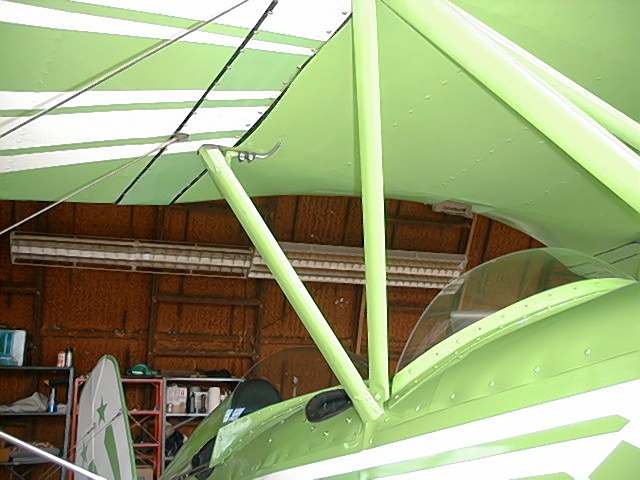

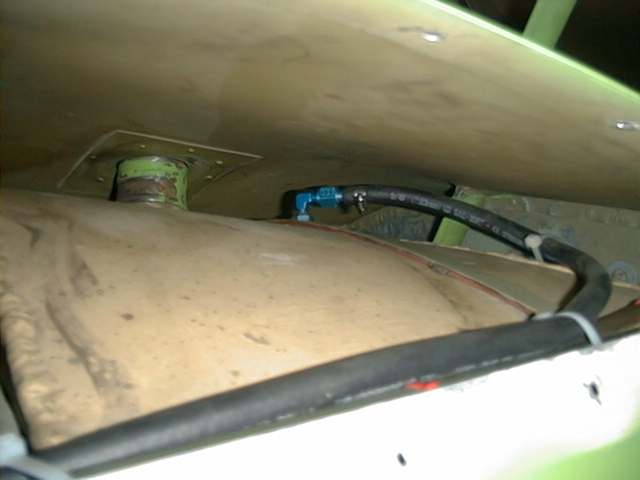

Inverted Vent
